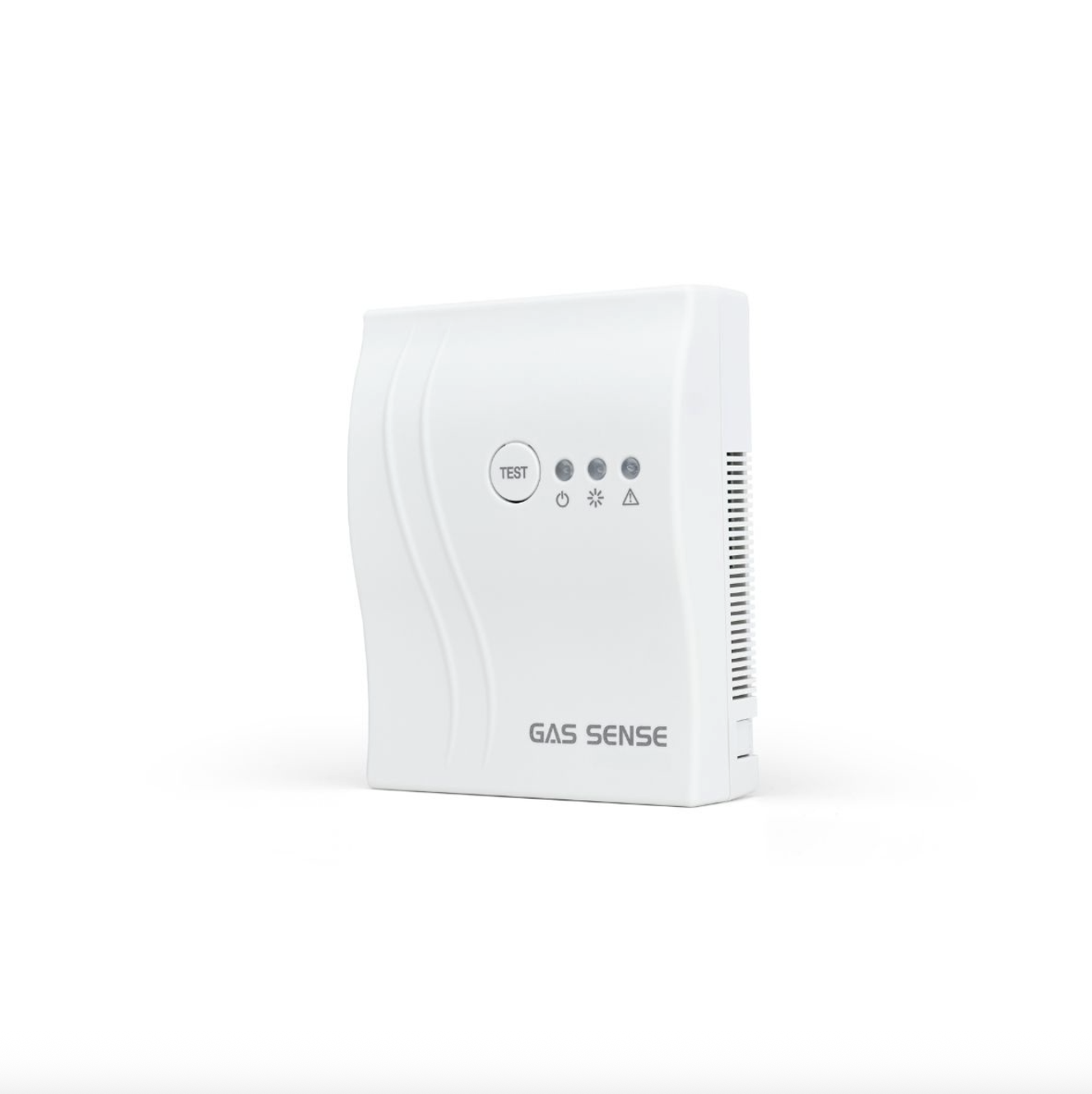

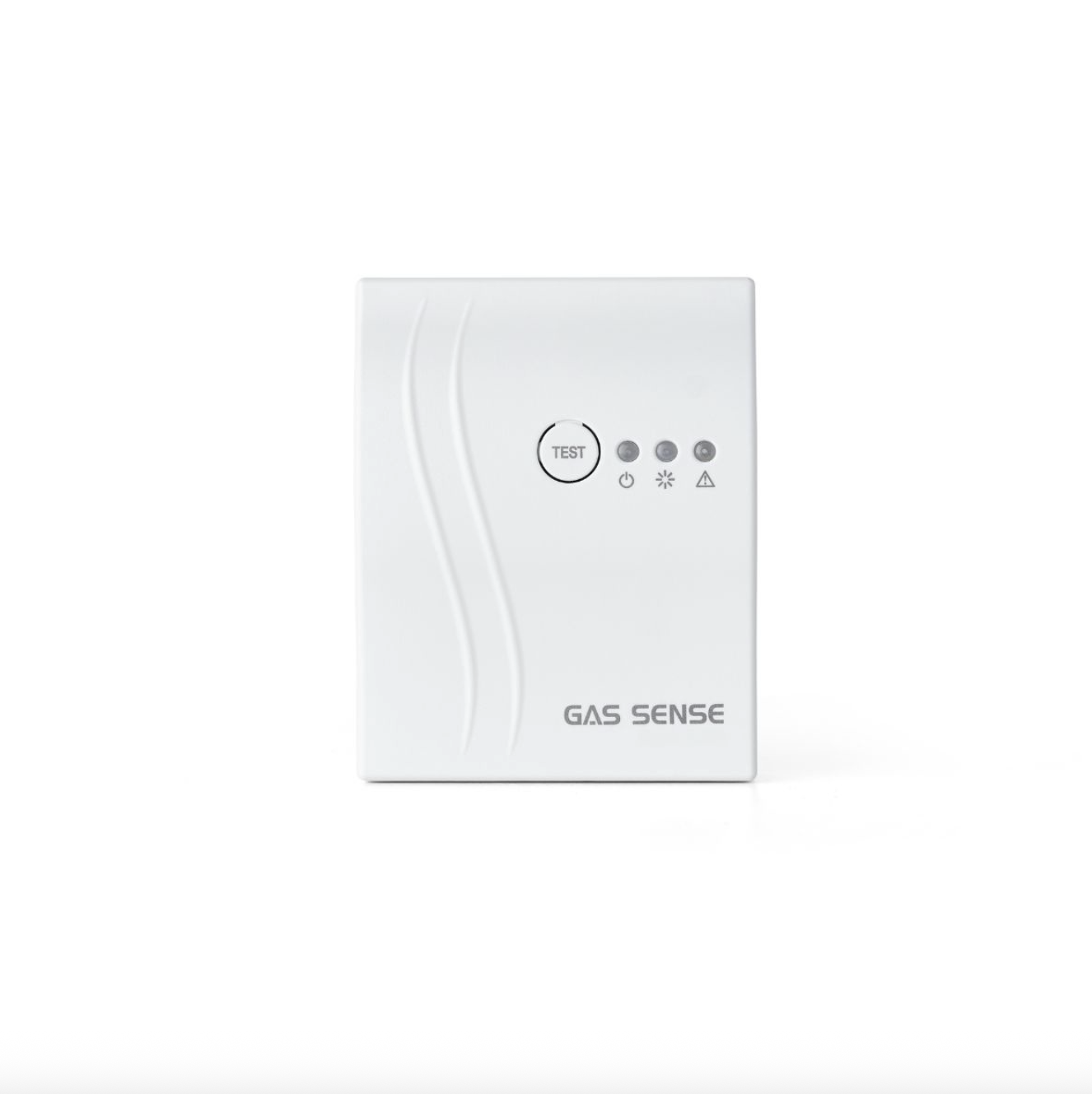

H-400 Series Gas Detectors
Residential Application
The H-400 line of autonomous gas detectors provides a reliable monitoring solution for CH4, LPG, CO and refrigerant gasses in residential environments.
With its intuitive design and streamlined functionality, the H-400 offers maximum value with no unnecessary complexity. A single alarm level with an integrated relay, easy silencing and effortless maintenance make the H-400 perfect for use in all residential applications.
Benefits:
Reliability beyond compliance: The H-400 is designed and manufactured in Europe, and conforms with all relevant European standards. Inside is a high-quality Japanese sensor with a proven track record of stable performance and unwavering accuracy.
100% of H-400 detectors undergo rigorous 3-stage testing before leaving our factory.
Quiet protection: Enjoy the seamless operation of the H-400, with no annoying beeps, false alarms or the need for battery checks.
Available gases: Methane (CH4), LPG, Carbon Monoxide (CO), CH4+CO, A1, A2 and A3 Refrigerants
Sensor type: Catalytic (CH4, LPG), Electrochemical (CO) and Semi-Conductor (Refrigerants)
Relay output: SPDT, 230V/2A
Operating voltage: 230V/50Hz
Power consumption: 5W
Sound signalization: Differential >85dB
LED indication - Normal Operation, Alarm and Fault
Operating temperature: -10 ÷ +50˚С
Humidity range: 30 ÷ 90% RH
Pressure: atmospheric ± 10%
Dimensions: 130 х 95 х 38mm
Weight: 0.150 kg
Ingress protection rating: IP42
Compliance: СЕ
Detected Gases | Range | Order Code |
Methane | 10-20%LEL | H-400.CH4 |
LPG | 10-20%LEL | H-400.LPG |
Carbon Monoxide | 40-250ppm | H-400.CO |
Methane + Carbon Monoxide | 10-20%LEL/ | H-400.CH4+CO |
Refrigerants (HFC, HCFC) | 5000ppm | H-400.REF |
