GA-300 Series Analogue Controllers
Industrial, Commercial and HVAC-R Application
The GA-300 controller is an easy-to-use, cost-effective solution for projects that require 1-4 detection zones. It is a highly reliable analogue unit, equipped with all necessary functionality for industrial and commercial detector monitoring.

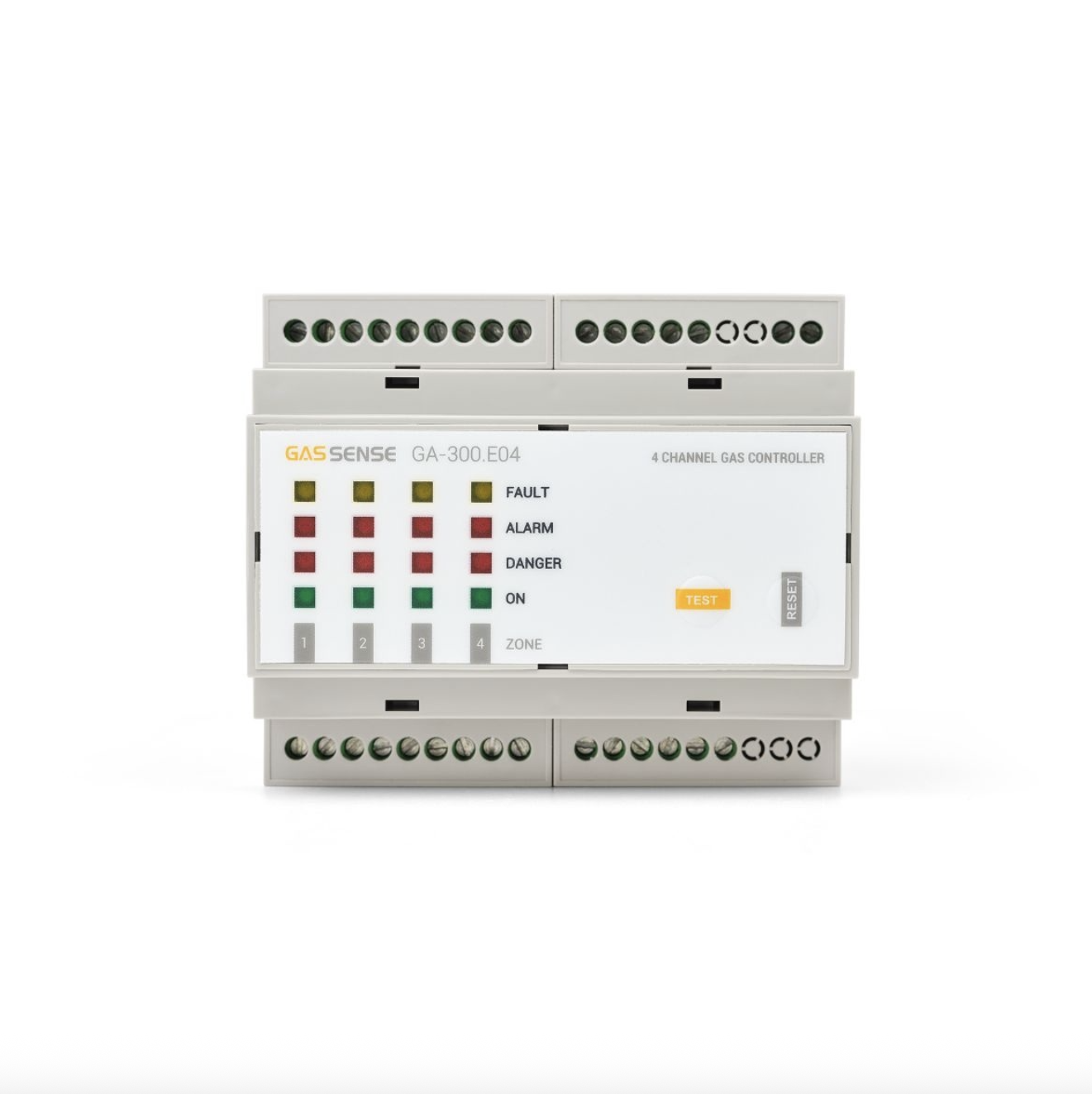

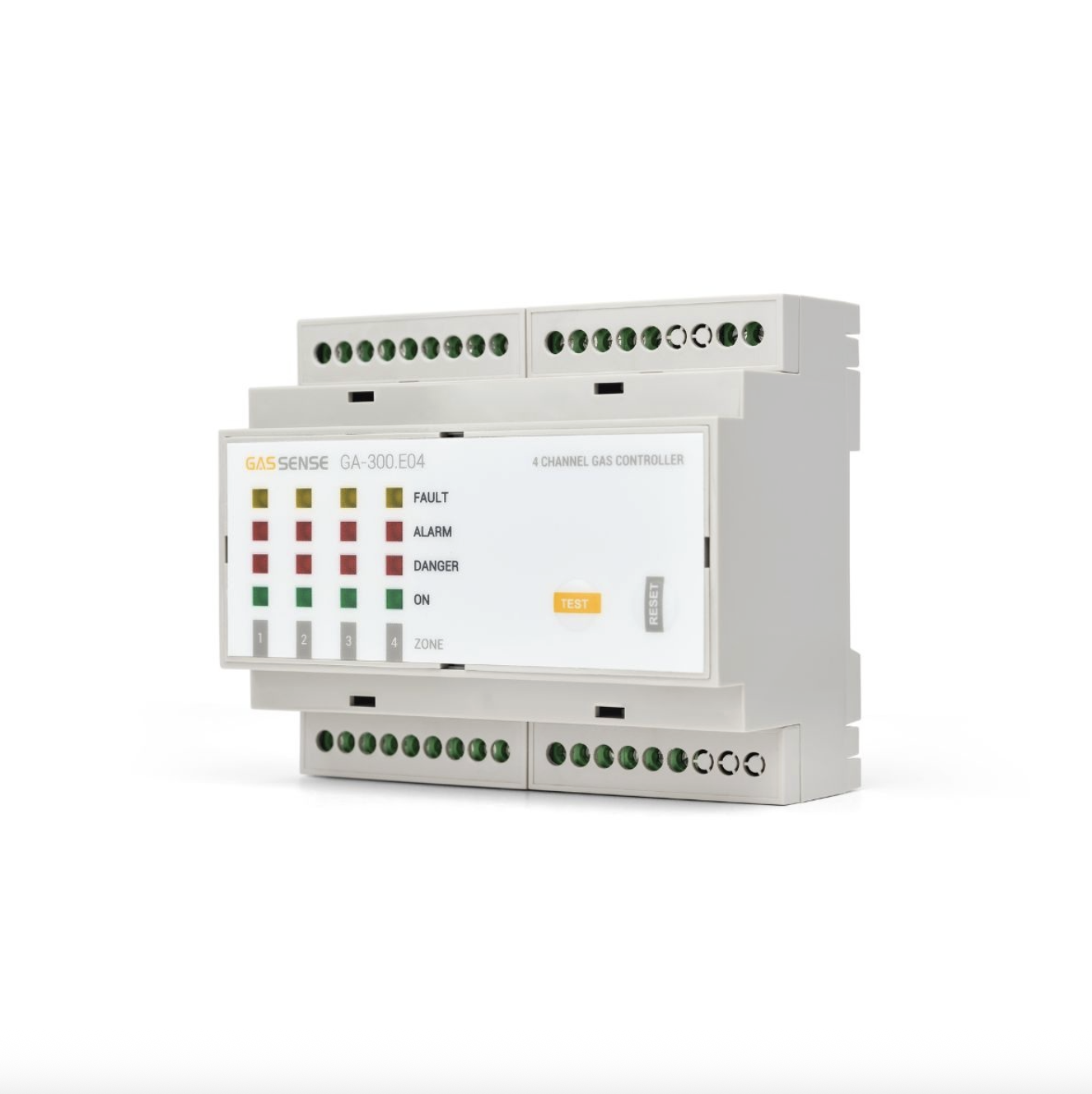

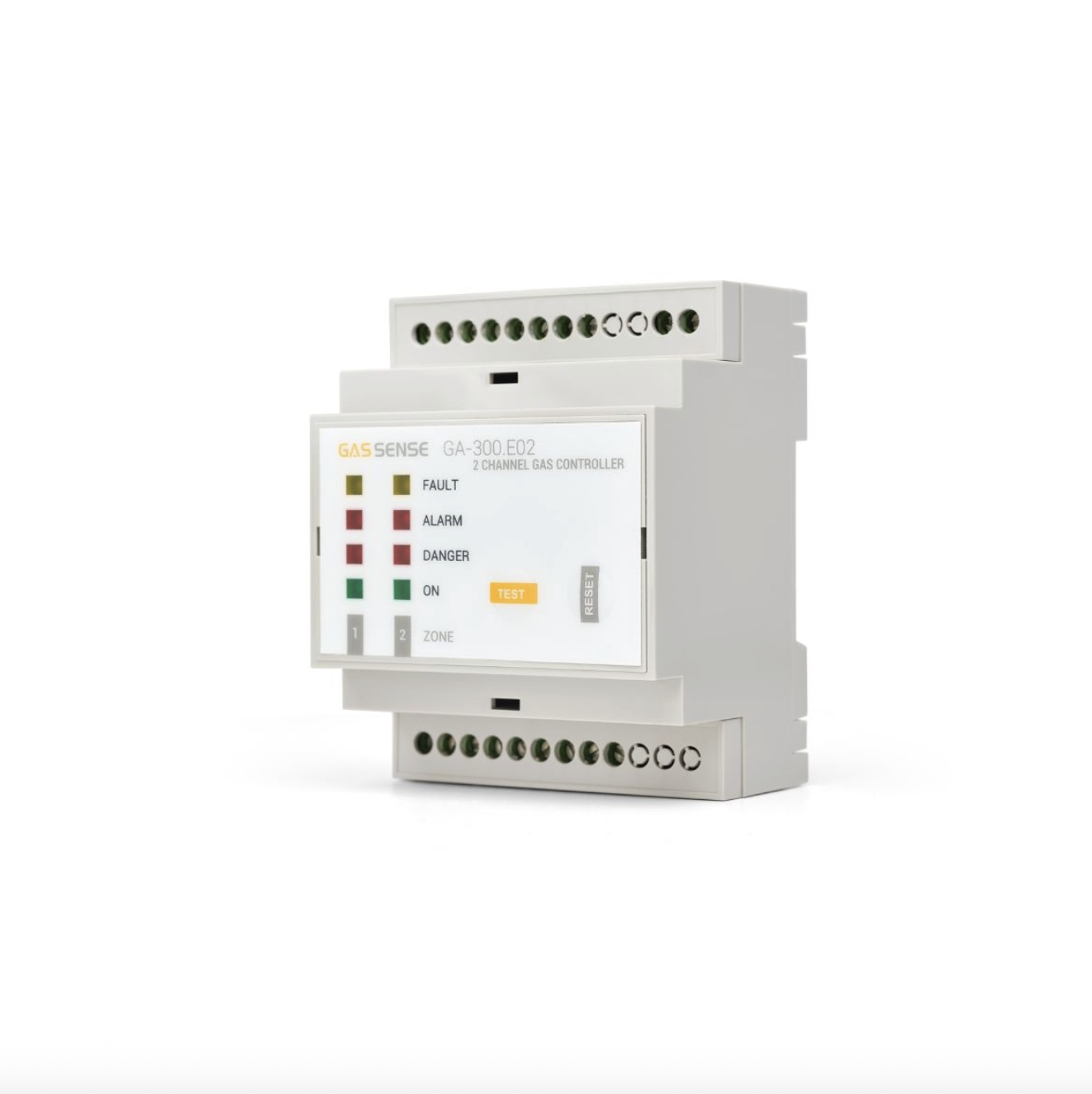

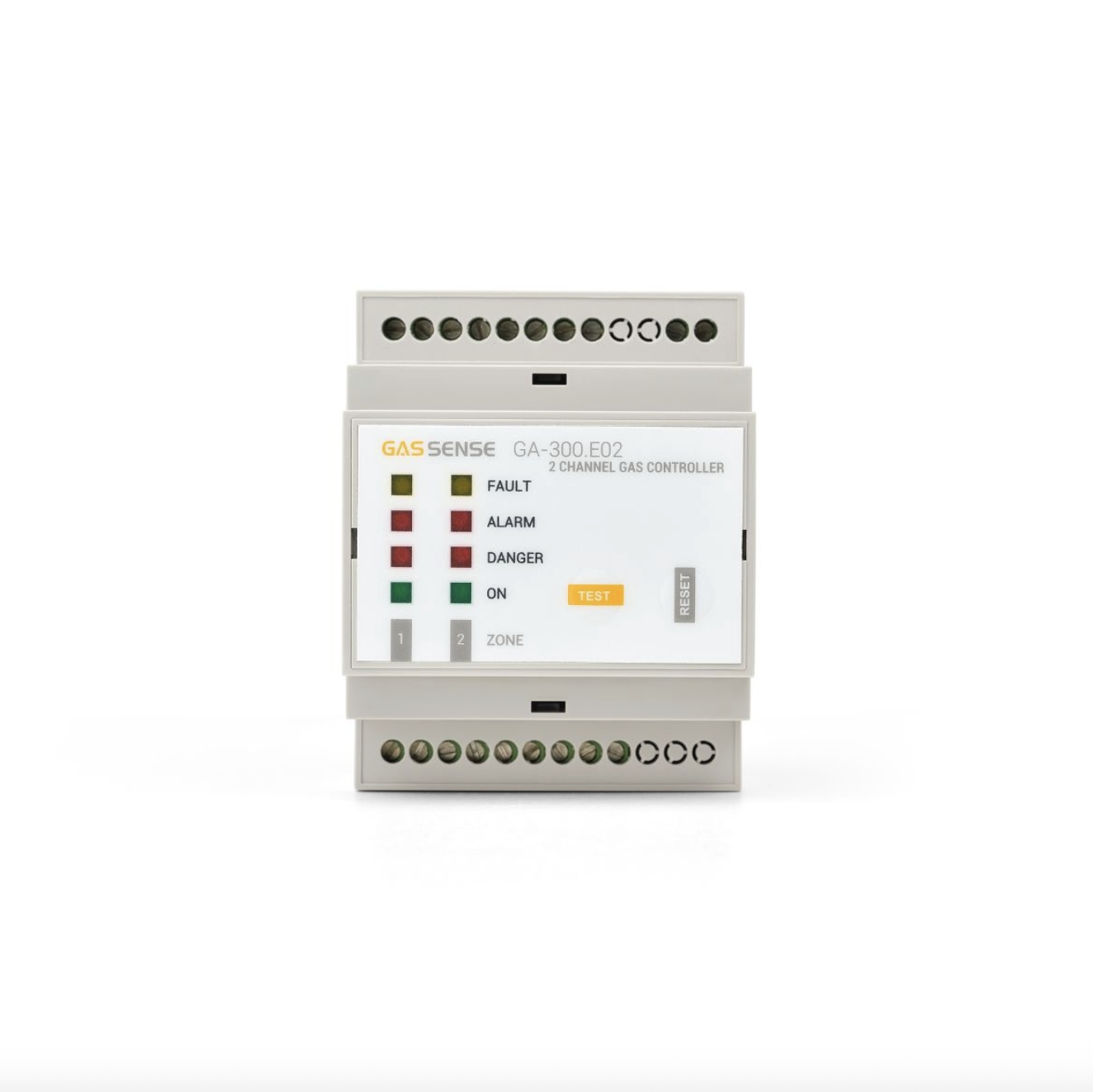

The GA-300 controller is available in a two or four-channel configuration (GA-300.E02 and GA-300.E04). Both versions are equipped with LED and sound signalization, integrated SPDT relays and ongoing detector diagnostic feature. The GA-300 uses 4-20 mA input signal, making it a perfect solution for small projects, including retrofit installations.
Applications range from compact HVAC-R projects to the smal-scale installations in Oil & Gas, General Manufacturing and many others.
Benefits:
Ease of Use and Cost-Effectiveness: The simple setup and operation of the GA-300 reduces training times and installation costs, making it an attractive option for budget-sensitive projects.
Reliability and Functionality: The established 4-20mA communications technology allows for reliable operation, universal compatibility and minimized installation expenses in new and retrofit installations.
Input signal: 4-20mA
Number of inputs: 1 to 4
Supported detectors: GDPC.A, GS-220.BC.V, GS-300.A, GDHP
Alarm levels: Pre-Alarm and Alarm
Signalization: LED, Sound
Output signals: Relay SPDT, 230V/2A
Operating voltage: Mains (220 VAC/50Hz); Back up (12 VDC)
Power consumption: 5W to 12W (depending on number of detectors)
Weight: 0.300 kg
Operating temperature: -20 ÷ +50°C
Humidity: 30 ÷ 90 % RH
Compliance: СЕ
